The Vehicle

Specifications for ​a 1911 Stanley Steamer, Model 62 with a flat rear seat.

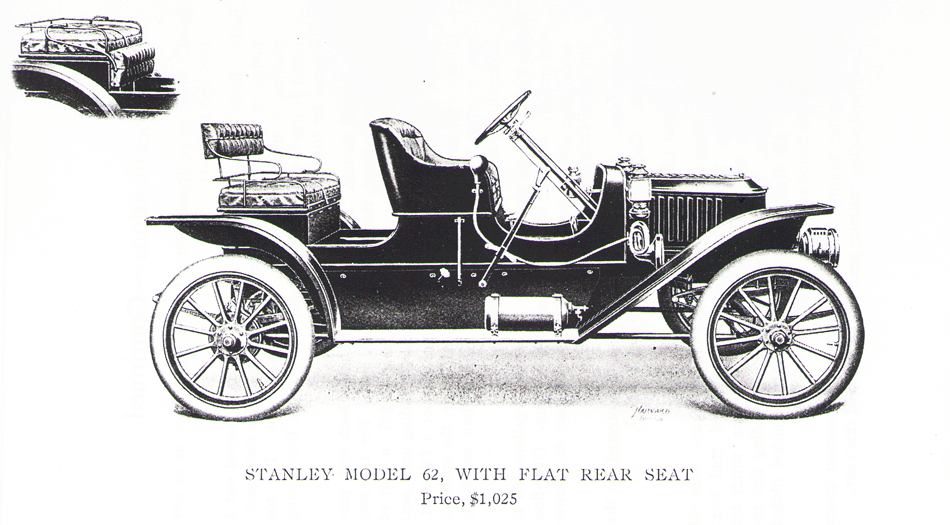

1911 Stanley Model 62 with Flat Rear Seat

Transient

Price - $1,025.00

Serial #: 5819

Engine - 10 Horsepower, 3-1/4" x 4-1/4" running in oil bath.

Boiler - A fire tube unit, 18 inches in diameter.

Burner - Drilled Stanley unit, 18 inches in diameter

Pilot - Stanley pilot

Wheelbase - 104 Inches

Thread - 56 Inches

Gear Ratio - 40 to 56

Brakes - Internal expanding service brake, external contracting emergency brake

Wheels - 32 x 3-1/2 inches, twelve spoke hickory.

Body - Body and sills are made from Ash.

Color - Brewster green body with yellow running gear.

Weight - 1,400 Pounds

Water Tank - 28 Gallon Capacity

Gasolene Tank - 16 Gallon Capacity

Accessories (Dealer Installed) - Rushmore Headlamps, Windshield, Top, Stewart Speedometer, and Front Doors

The Stanley Motor Carriage Company built just over 10,830 vehicles from 1901 till 1927. F.E. and F.O. Stanley were constantly tinkering and built over 70 different models. Only 201 Model 62 Stanley's were produced from September 1910 till July 1912 and there are only six documented survivors that we have seen.
